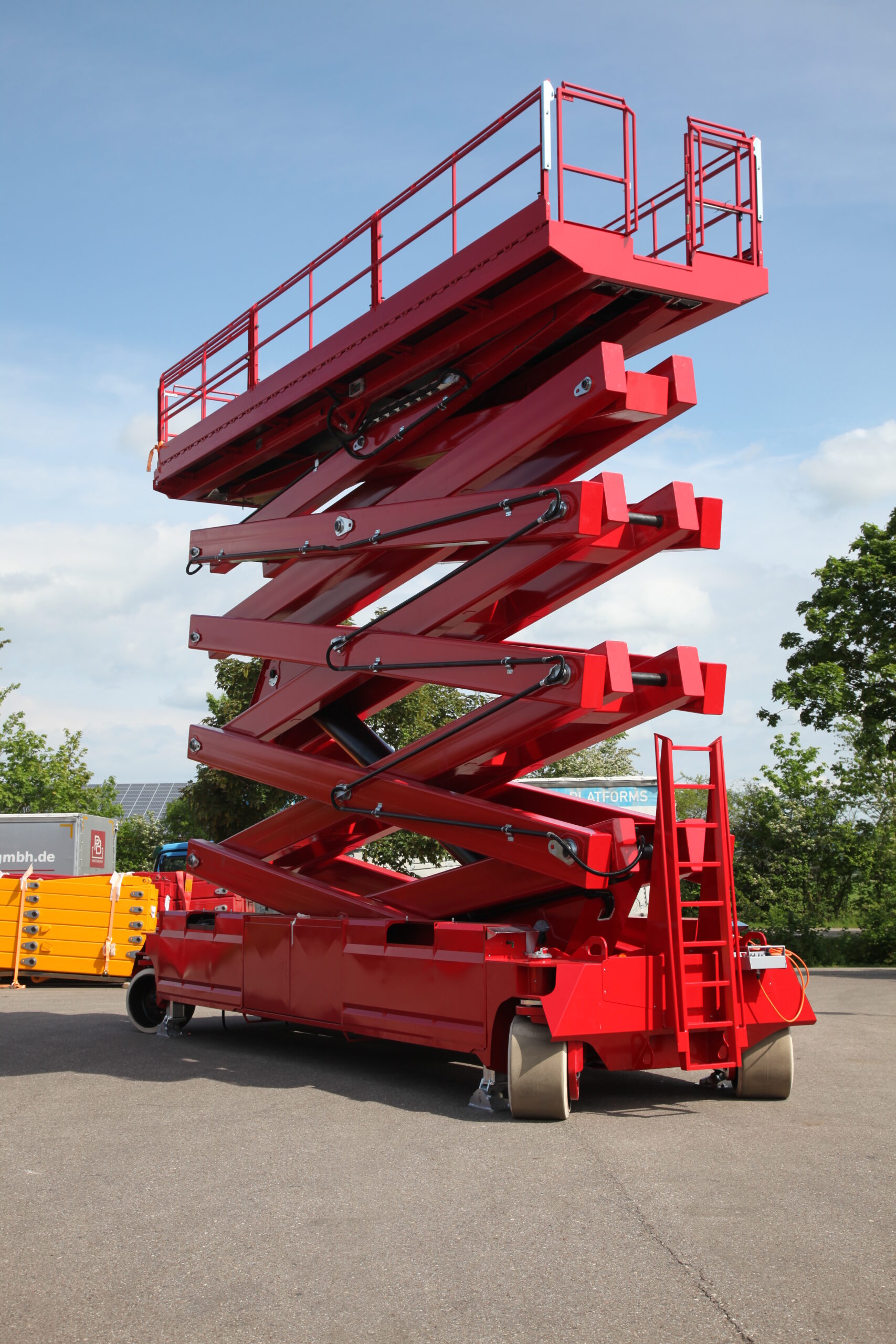

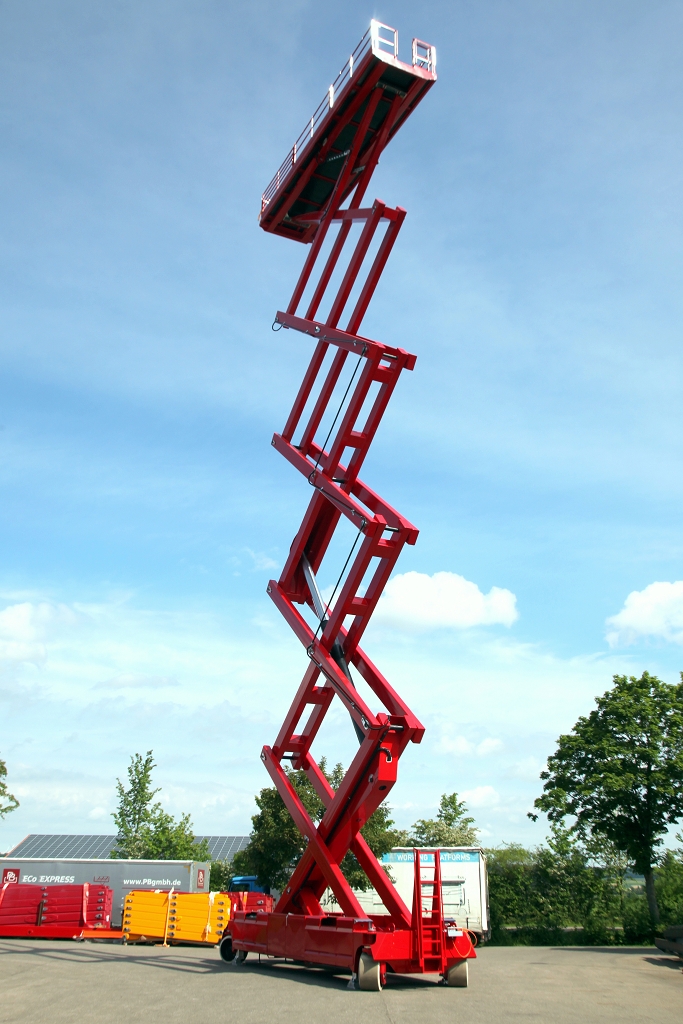

37.50 m (123.03 ft) working height is the global benchmark when it comes to reaching extreme heights with a scissor lift. This is exactly what the PB S370-24ES makes possible. The machine is not only impressive in terms of its working height; its other dimensions of 8.74 m x 2.40 m x 4.13 m (28.68 ft x 7.87 ft x 13.55 ft) also speak for themselves.
In addition, the huge max. 10.50 m x 2.11 m (34.45 ft x 6.92 ft) platform – almost 22.2 m² (238.96 ft²) – provides plenty of working space for up to 4 workers plus tools and materials, combined with a 750 kg (1653 lbs) load capacity.
The drive system is also very modern: Thanks to its emission-free and durable electro-hydraulic drive, the machine can be used indoors in enclosed spaces in an environmentally friendly way.
The machine can be maneuvered via stepless, smooth proportional control for all directions (driving, lifting, lowering). Thus, despite the overall dimensions of the PB S370-24ES 4×4, the operator retains full control of the machine at all times, even when space is limited. A standard 4-wheel drive and 2-axle steering provide the necessary flexibility and maneuverability.
The PB S370-24ES 4×4 has an indoor approval and can be driven up to a height of 20.00 m (65.62 ft). A standard differential lock and 15% gradeability complete the driving characteristics. The fully automatic support system ensures a safe and stable position at all times at the push of a button, even on uneven ground.
| Technische Daten | |
|---|---|
 Working height | 37,50 m |
 Platform height | 35,50 m |
 Lift capacity | 750 kg |
 Lift capacity platform extension | - |
 Total length | 8,74 m |
 Total width | 2,40 m |
 Total height | 4,13 m |
 Turning radius outside | 9,06 m |
 Transport height | 3,21 m |
 Total weight | 34.940 kg |
| Technische Daten 2 | |
|---|---|
 Platform extension (scissors) | 2,25 m |
 Gradeability | - |
 Speed - stowed | 3,60 km/h |
 Speed - raised | 0,23 km/h |
 Drive type | Electro-hydraulic drive |
 Battery capacity | - |
 Area of application | indoor + outdoor |
 People indoor | - |
 People outdoor | - |
| Drivable at full height | up to 20 m |
Technical data are subject to change.
