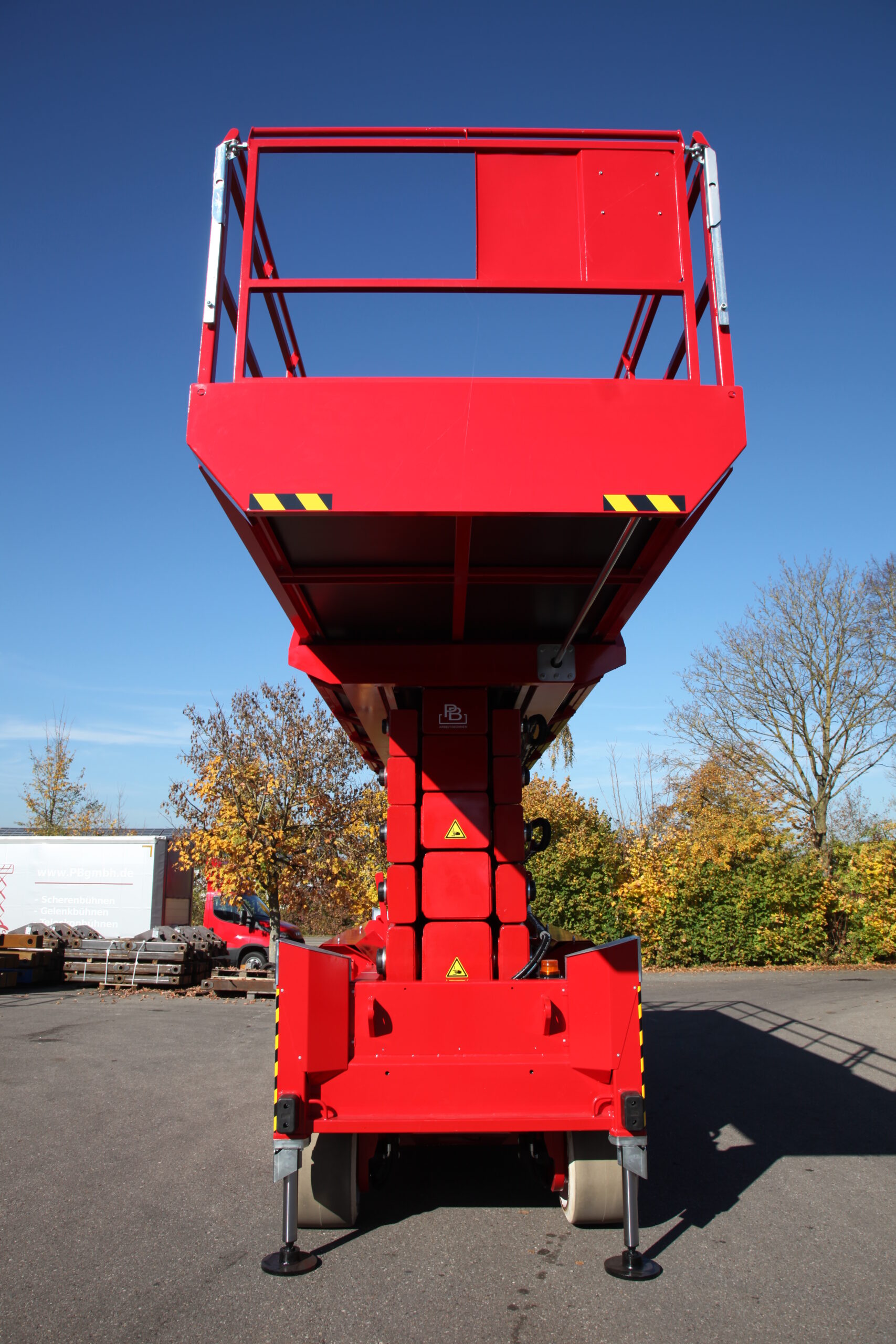

The scissor lift PB S320-14ES 4×4 marks the beginning of the PB working platforms, which have high working heights and narrow dimensions.
With a working height of 32.02 m (105.04 ft), it is perfect for working at higher altitudes – indoor and outdoor. Its overall length is 6.77 m (22.22 ft) with a width of just 1.40 m (4.59 ft) and a height of 4.13 m (13.55 ft).
In addition, the machine offers everything needed for effective work: Even in the standard position, the Mega-Deck platform offers a space of 6.16 m x 1.20 m (20.21 ft x 3.94 ft) but can be enlarged to an immense 7.66 m x 1.20 m (25.13 ft x 3.94 ft) within seconds. In combination with a lift capacity of 750 kg (1653 lbs) and approval for up to 4 workers, this creates a more than decent overall package “for heights”.

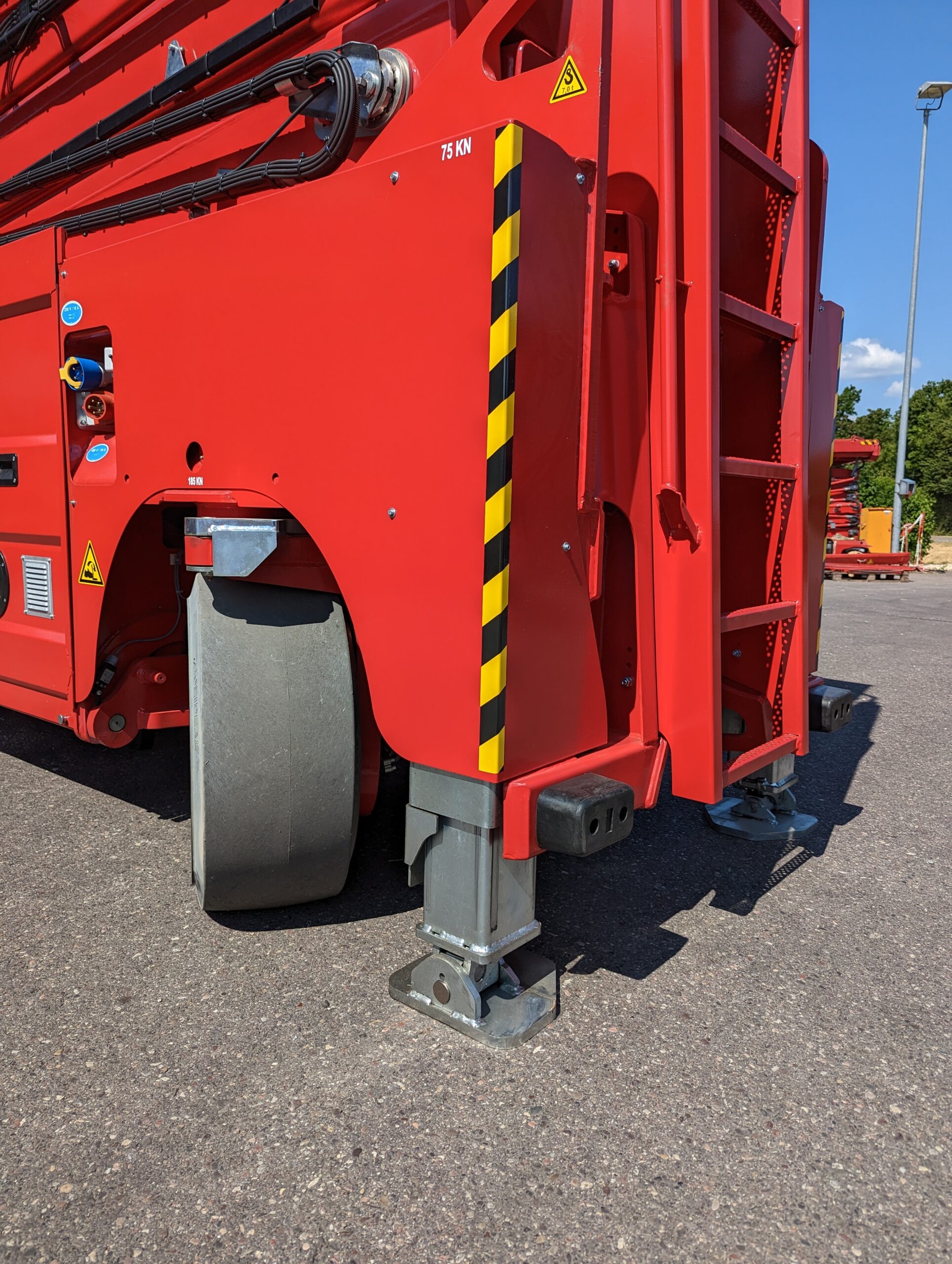

The fully automatic PB outrigger system compensates for rough floors and makes many difficult uses possible. Several control systems, including load and tilt monitoring, ensure a high level of safety at any time.
Despite its impressive dimensions, the machine can be maneuvered precisely and flexibly thanks to stepless proportional control (drive, lift, lower) and double-axle steering mechanism in every position.
With an exhaust-free electro-hydraulic motor and 4-wheel drive, the working platform is powered persistently and powerfully for indoor applications. Not only that: even when fully extended, the PB S320-14ES can be moved easily.
Alternatively, the scissor lift is also available as PB S320-14E without the supports system.
| Technische Daten | |
|---|---|
 Working height | 32,02 m |
 Platform height | 30,02 m |
 Lift capacity | 750 kg |
 Lift capacity platform extension | - |
 Total length | 6,77 m |
 Total width | 1,40 m |
 Total height | 4,13 m |
 Turning radius outside | 8,01 m |
 Transport height | 3,07 m |
 Total weight | 24.430 kg |
| Technische Daten 2 | |
|---|---|
 Platform extension (scissors) | 1,50 m |
 Gradeability | - |
 Speed - stowed | 2,77 km/h |
 Speed - raised | 0,21 km/h |
 Drive type | Electro-hydraulic drive |
 Battery capacity | - |
 Area of application | indoor + outdoor |
 People indoor | - |
 People outdoor | - |
| Drivable at full height | Yes |
Technical data are subject to change.
